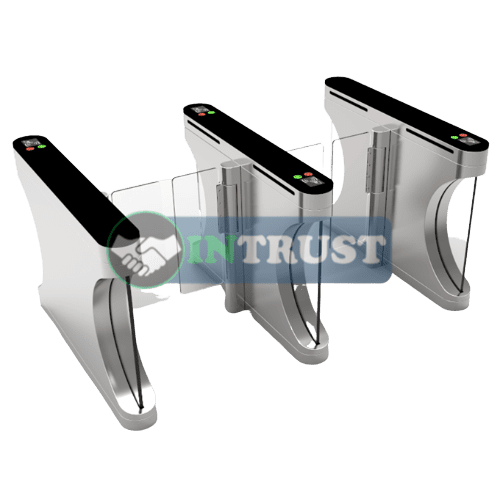

Fast-lane Turnstile Speed Gate with Brush-less DC motor
Product Videos
The Technical Parameter of High Speed Swing Turnstile
| Supply Voltage | 110V-240V, AC 50HZ |
| Drive Motor | DC 24V/40W |
| Working temperature | －35℃ ～ 60℃ |
| Relative humidity | ≤95%, No Condensation |
| Input Interface | Pulse signal |
| Communication Interface | RS485/Relay signal |
| Forced Entrance | Arm locked, access forbidden |
| Motor | Brushless motor |
| Size | L 1400*W185*H1020mm |
| Housing material | SUS304 ,1.5mm body and 2mm top cover |
| Running direction | Full automatic single direction, bi-direction (optional |
| Sensor | 6 pairs Brake lock anti-collision design |
| The anti-hit mechanism, reset automatically | |
| Encoder digital positioning, more precise | |
