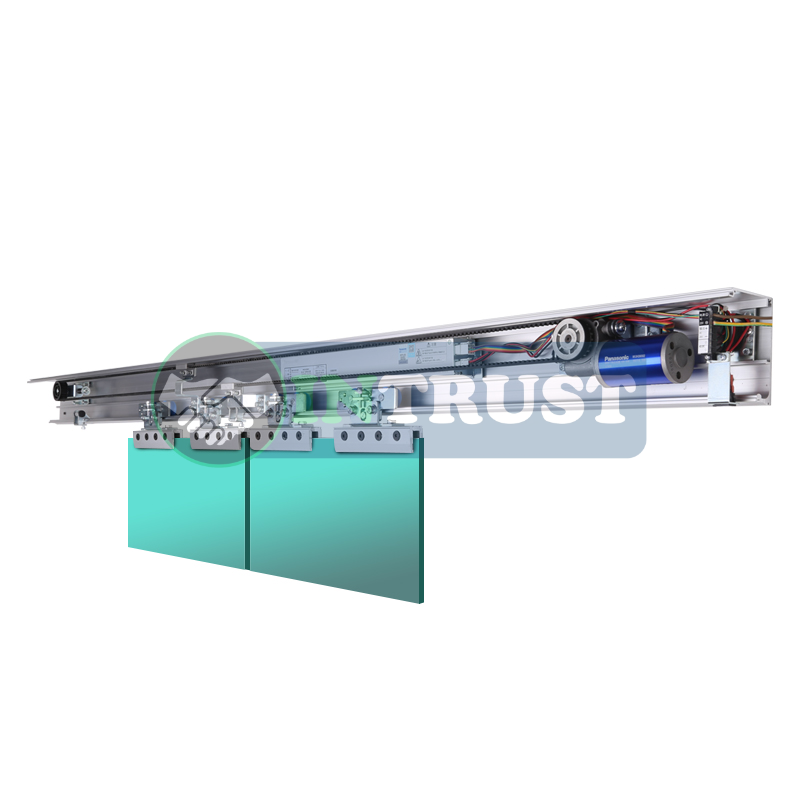

PANASONIC H3, Heavy Duty Automatic Sliding Glass Door Operator

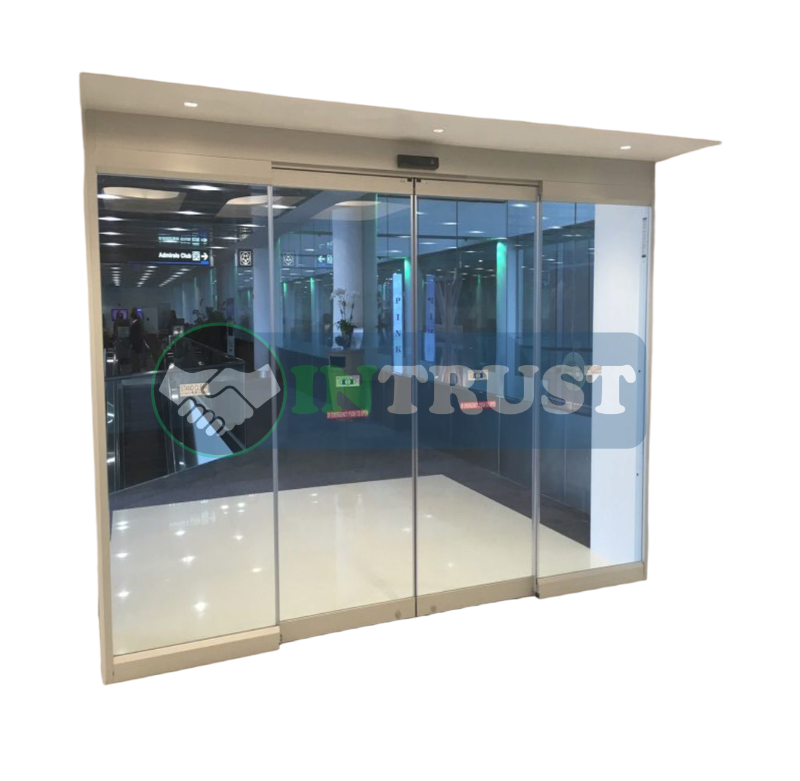

The Panasonic H3 Automatic Sliding Sensor Door is an automatic entrance door system designed to provide convenient, hands-free access for commercial, residential and institutional buildings. The sensor-based system detects approaching users and automatically operates the sliding door for smooth and convenient entry and exit.
Suitable for offices, hospitals, hotels, banks, shopping malls, showrooms, restaurants, retail stores and commercial buildings, the Panasonic H3 automatic sliding door can be configured with suitable glass door panels, sensors, operator components and safety accessories.
The system can be customized according to the required door width, height, glass configuration and site conditions, subject to the specifications of the selected H3 system.

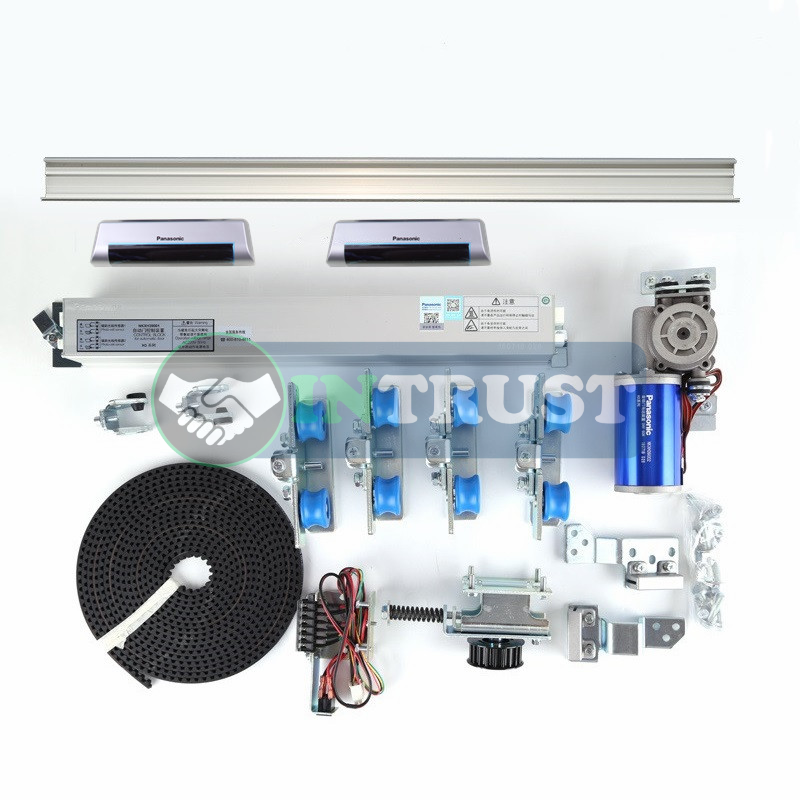

Profile – 1 Pcs

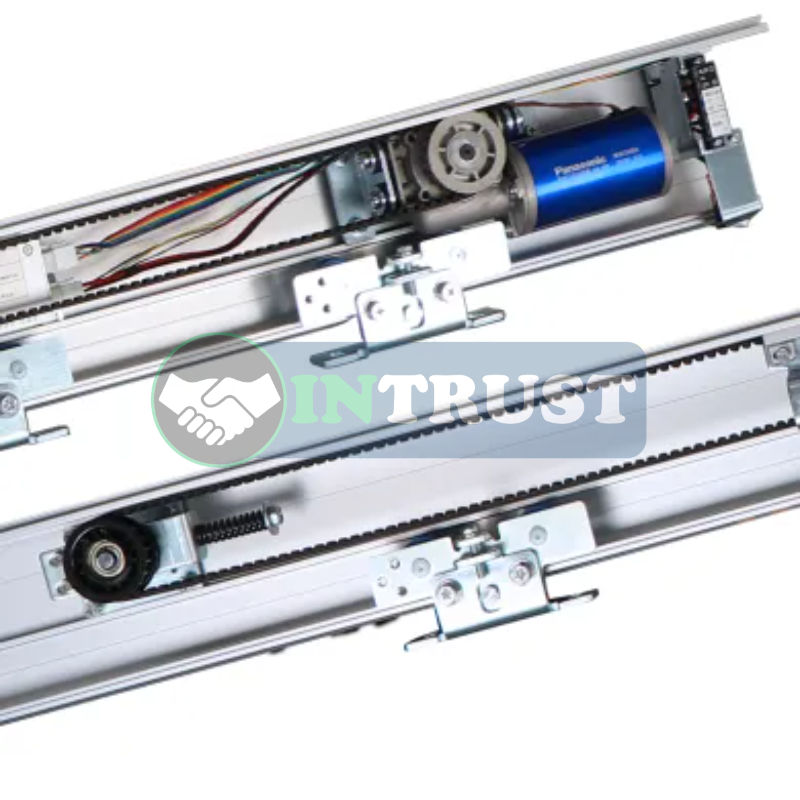

Door Operator – 1 set
Top Cover – 1 Pcs
Door Hanging Assembly – 1 set
Door Hanger – 1 set
Belt – 1 Pcs
Pully – 1 Pcs
Stopper – 2 Pcs
Motion/Presence Sensor – 1 or 2 pcs
Door Control Unit – 1 set
| Gate sliding modes | single open/double open |
| Door weight | 1X120kg / 2X120kg |
| Clean opening width: | 600-1500mm/1200-1800mm |
| Power supply voltage | AC 220V ± 10%, 50/60Hz |
| Power consumption: | <60W |
| Opening speed | 300mm-600mm/s (adjustable) |
| Closing speed | 300mm-600mm/s (adjustable) |
| Open time | 0-9s (adjustable) |
| Ambient temperature | -20 ~ +50℃ |
| Manual opening force | <50N |
| Open style | Motion sensor (As per Requirement) |
Door Dimension: Custom manufactured as per site requirements. Standard clear opening width approximately 800–2,400 mm and clear opening height approximately 2,000–2,500 mm. Final door dimensions, panel thickness, operator capacity and sealing arrangement shall be determined according to site conditions, door weight, wall construction and project requirements.
Common Sizes
900 × 2100 mm – single door
1200 × 2100 mm – single/sliding application
1500 × 2100 mm – wide single sliding door
1600 × 2100 mm – double sliding door
1800 × 2100 mm – double sliding door
2000 × 2200 mm – wider hospital entrance
2400 × 2400 mm – large specialized opening
Frequently Asked Questions
What is the Panasonic H3 Automatic Sliding Sensor Door?
The Panasonic H3 is an automatic sliding door system designed to provide sensor-based hands-free entrance and exit through a sliding door.
How does the Panasonic H3 automatic door work?
A motion sensor detects an approaching person and sends a signal to the door controller. The operator then activates the sliding mechanism to open the door automatically.
Where can Panasonic H3 automatic sliding doors be used?
They can be specified for offices, hospitals, hotels, banks, shopping malls, showrooms, restaurants, retail stores and commercial buildings, subject to the system's technical suitability.
Is the Panasonic H3 suitable for glass doors?
Yes, the system can be configured for suitable automatic sliding glass door applications using compatible hanging and glass-door hardware.
Is the door suitable for commercial buildings?
Yes. Automatic sliding doors are commonly used at commercial entrances where convenient hands-free pedestrian access is required.
What is the minimum door size?
For general project planning, a typical minimum clear opening can start at approximately 800 mm wide × 2,000 mm high. Final dimensions should be confirmed for the selected system.
What is the maximum door size?
A typical project range can extend to approximately 2,400 mm wide × 2,500 mm high, depending on the door configuration, panel weight and operator capacity.
Can the door dimensions be customized?
Yes. Automatic sliding doors can be manufactured and installed according to the actual site opening, provided the final dimensions remain within the selected operator's technical limits.

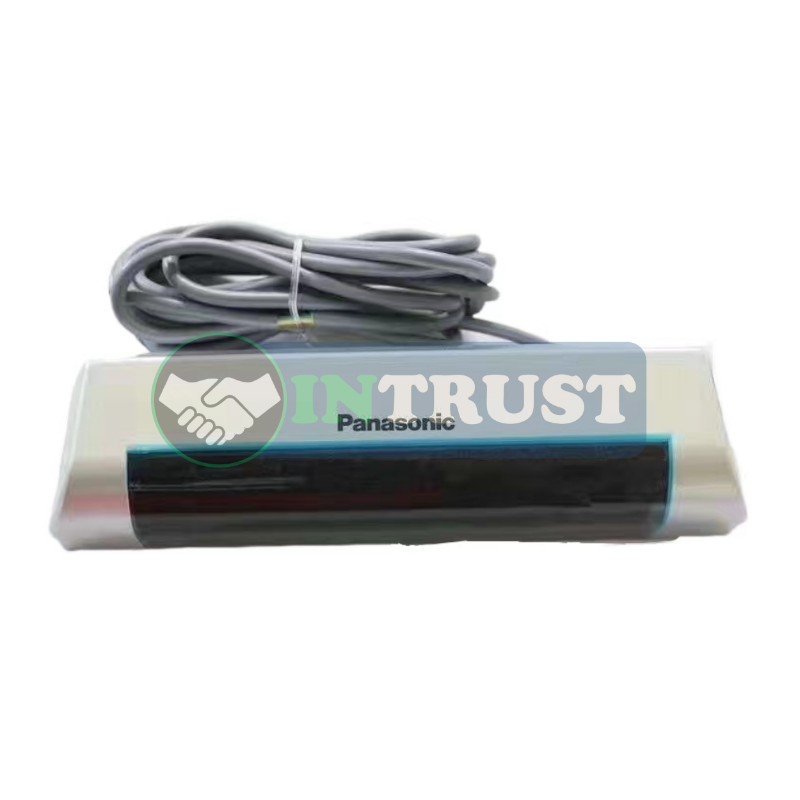

What type of sensor is used?
A suitable automatic door motion/presence sensor can be installed to detect people approaching the entrance. The exact sensor configuration depends on the project requirements.
Can an access-control system be connected?
Yes. Where supported by the selected configuration, the automatic door can interface with access-control systems such as card readers, biometric devices or other compatible controls.
Can the door be operated manually?
Automatic sliding door systems can incorporate manual release or emergency operation arrangements, depending on the specific configuration.
Is a safety sensor required?
Safety sensors are recommended where required by the project design and applicable safety requirements. They can help detect people or obstacles within the door's operating area.
Is professional installation required?
Yes. Professional installation is recommended to ensure proper track alignment, sensor positioning, electrical connections, door adjustment and safe operation.
Is the Panasonic H3 available in Bangladesh?
Panasonic H3 automatic sliding door systems may be supplied for projects in Bangladesh depending on local availability and supplier configuration. Product availability and exact specifications should be confirmed before ordering.

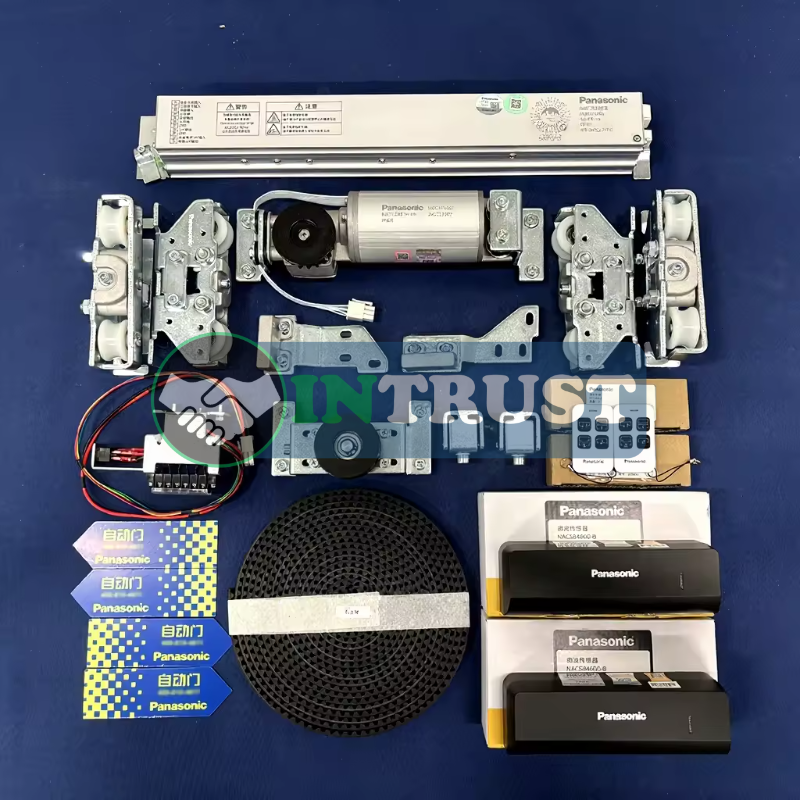

Can you supply a complete Panasonic H3 automatic door kit?
A complete automatic sliding door package can be specified with the operator, track, motor, controller, sensors, rollers, glass fittings, mounting hardware and optional accessories according to the project requirements.
