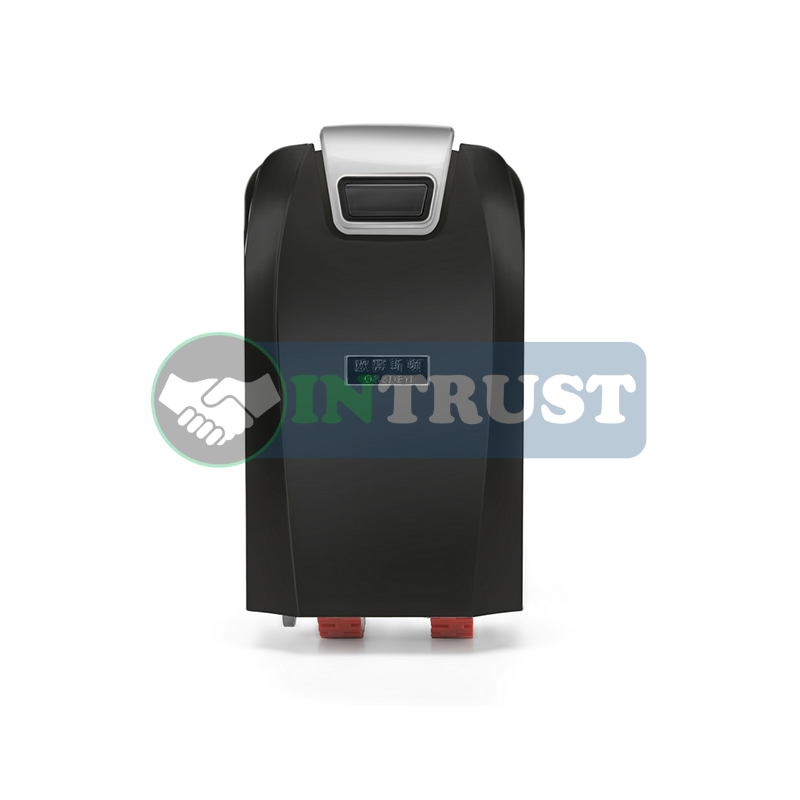

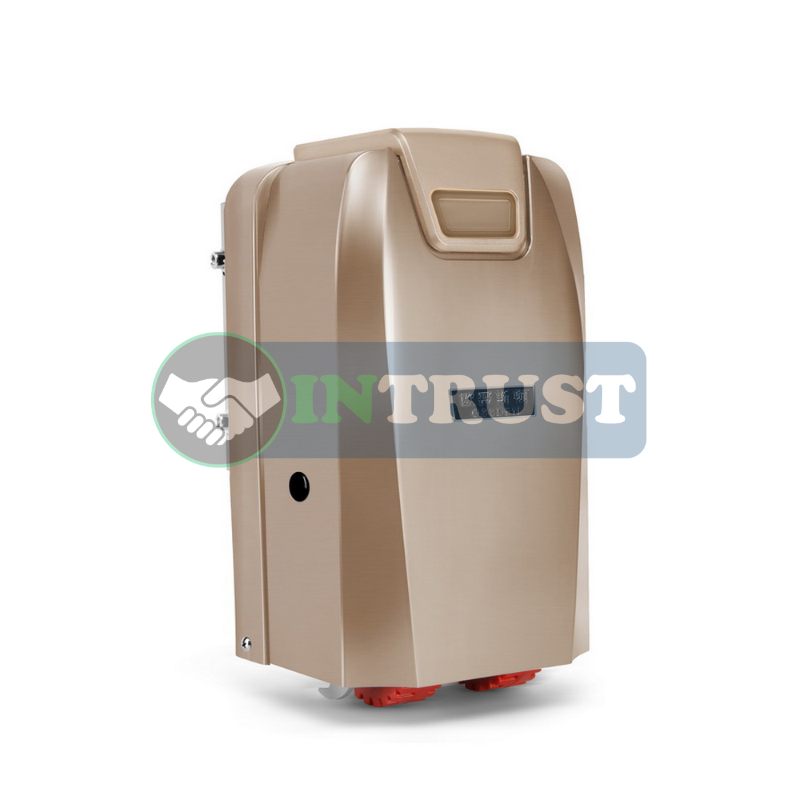

OSSDEN, T890 Swing Gate Opener (1,000kg) Roller Type for Heavy Duty Industrial & Commercial Gate
T890 is a heavy-duty automatic swing gate opener designed for smooth, reliable, and secure gate operation. With powerful motor performance and advanced control technology, it is suitable for residential, commercial, and industrial swing gates. The system supports convenient remote operation, soft start and stop, obstacle detection, automatic closing, and manual emergency release during power failure.
- 2 x Gate Motor
- 2 x Remote Controls
- Hardware
- Instruction Manual
- Control Box
- Clutch Key
- Set Screw
- Optional Components: Alarm Lamp, Infrared ray, Back-up supply, Bluetooth, Vehicle Remote Control, Mobile Phone Visual Control, WIFI….etc
Feature:Â
- Soft start and slow stop
- Automatically stop against extra resistances.
- Optional operation mode for single or dual wing.
- Available for Bluetooth / Mobile phone app control.
- Interface for card reader and underground detector.
- Large opening angle ＞180°
Technical Data Sheet:
| Model: | T890 |
|---|---|
| Input Voltage: | DC24V |
| Power: | 100W*2 |
| Rotation Speed: | 50rpm |
| Running Speed: | 0-15m/min |
| Max. Gate Weight: | ≤800KG |
| Temperature: | -45°C~+65°C |
| Max. Gate Width: | ≤8m |
| Dimension of Gate Opener: | 370*200*165mm |
| Dimension of Control Box: | 225*178*88mm |
| Packing Weight/Set: | 32 KG |
Frequently Asked Questions
What is the OSSDEN T890?
The T890 is a heavy-duty automatic swing gate opener designed for reliable and convenient gate automation.
What type of gate is the T890 suitable for?
It is designed for swing gates used in residential, commercial, and industrial applications.
Can the T890 operate double swing gates?
Yes, the system can support single- or dual-wing gate operation depending on the installation configuration.
Can the T890 be operated by remote control?
Yes, remote control operation is available for convenient opening and closing.
Does the T890 support automatic closing?
Yes, an adjustable automatic closing function can be configured according to the installation requirements.
Does the T890 have obstacle protection?
Yes, the system can stop or reverse the gate when an obstruction is detected, helping improve operational safety.
Can additional access-control devices be connected?
Yes, compatible systems can include card readers, keypads, infrared photocells, Wi-Fi, Bluetooth, and mobile control options.
What happens if there is a power failure?
A manual emergency release allows the gate to be operated manually when electrical power is unavailable.
Is the T890 suitable for outdoor installation?
Yes, OSSDEN automatic gate systems are designed for outdoor gate automation applications when properly installed and protected.
Where can the T890 be used?
It can be used for villas, residential properties, offices, commercial buildings, factories, compounds, and other controlled-access areas.
