OSSDEN, A750 Linear Type Swing Gate Opener (800kg) for Industrial & Commercial Use
OSSDEN A750 Automatic Swing Gate Opener is a strong and reliable solution for automating large residential, villa, commercial, and industrial swing gates in Bangladesh. It supports gates up to 800 kg and up to 8 meters wide. The A750 provides smooth and quiet operation with automatic stop when extra resistance is detected. It can be operated by remote control and can also support options such as Wi-Fi, Bluetooth, mobile phone control, card reader, and photocell safety sensors. This type of Linear Swing Gate Opener comes with a thrust force 400*3000N, which can lift gates weighted 800kgs. You can choose single swing or dual swing to accommodate your needs.
- 2 x Gate Motor
- 2 x Remote Controls
- Hardware
- Instruction Manual
- Control Box
- Clutch Key
- Set Screw
- Optional Components: Alarm Lamp, Infrared ray, Back-up supply, Bluetooth, Vehicle Remote Control, Mobile Phone Visual Control, WIFI….etc
Feature:Â
- Automatically stop against extra resistances.
- Optional operation mode for single or dual wing.
- Automatic close function, time is adjustable.
Technical Data Sheet:
| Model: | A-750 |
|---|---|
| Input Voltage: | AC230V |
| Power: | 150W*2 |
| Thrust Force: | 400*3000N |
| Current: | 1.2A |
| Max. Gate Weight: | ≤800KG |
| Running Time: | 32s |
| Reduction Ratio: | 1/36 |
| Dimension of Gate Opener: | 993*126*88mm |
| Dimension of Control Box: | 225*178*88mm |
| Packing Weight/Set: | 28.3 KG |
Dimension of Gate Opener:993*126*88mm
Dimension of Control Box:225*178*88mm
Frequently Asked Questions
What is the OSSDEN A750?
OSSDEN A750 is an automatic motor for swing gates.
What type of gate can use A750?
It is suitable for single or double swing gates.
What is the maximum gate weight?
The maximum recommended gate weight is up to 800 kg.
What is the maximum gate width?
The maximum gate width is up to 8 meters, depending on the installation and gate design.
What is the power supply of A750?
The A750 uses AC 230V power.
What is the motor power?
The rated motor power is 150W.
Can I control the gate by remote?
Yes. The gate can be operated by remote control.
What is the remote control distance?
The standard remote range is approximately 40–60 meters, depending on site conditions.
Is A750 suitable for Bangladesh weather?
Yes. The opener has IP54 protection and is designed for outdoor gate applications. Proper installation and protection are still recommended.
Is the A750 noisy?
No. It is designed for smooth and relatively quiet operation, with a listed noise level of ≤56 dB.
What happens if the gate meets an obstacle?
The system can stop or reverse when extra resistance is detected, depending on the control settings and safety setup.
Can A750 work with a double swing gate?
Yes. It can be used for double swing gate systems with suitable control configuration.
Can A750 work with access control systems?
Yes. Optional interfaces can support devices such as card readers, keypads, Wi-Fi, Bluetooth, and other access-control systems.
Can I open the gate during a power failure?

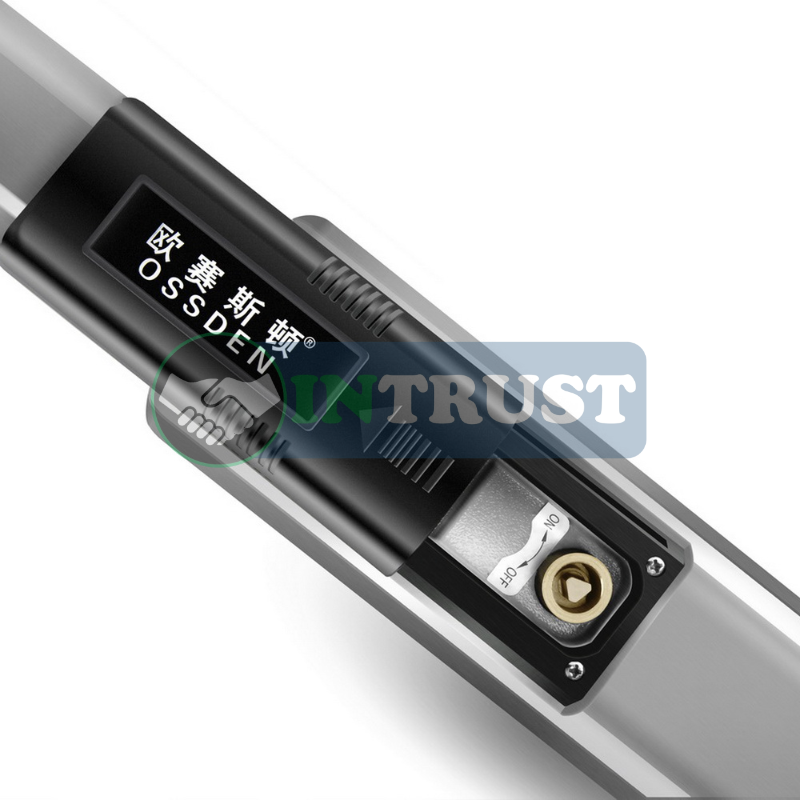

Yes. An emergency manual release key can be used to release the gate for manual operation.
Where can OSSDEN A750 be used in Bangladesh?
It is suitable for houses, villas, apartments, offices, factories, warehouses, commercial buildings, and other properties requiring automatic swing-gate control.
