150T China, Multifunctional Automatic Sliding Glass Sensor Door Operator
The Automatic Sliding Sensor-Based Glass Door Operator 150T China is a reliable automatic door system designed for smooth, quiet, and convenient operation of sliding glass doors. It uses a motion sensor to automatically detect approaching users and open the door, then closes it after passage.
Suitable for commercial buildings, offices, shopping malls, hospitals, hotels, restaurants, banks, showrooms, retail stores and residential entrances in Bangladesh. The 150T automatic sliding door operator is designed for easy installation, smooth movement and regular daily use.

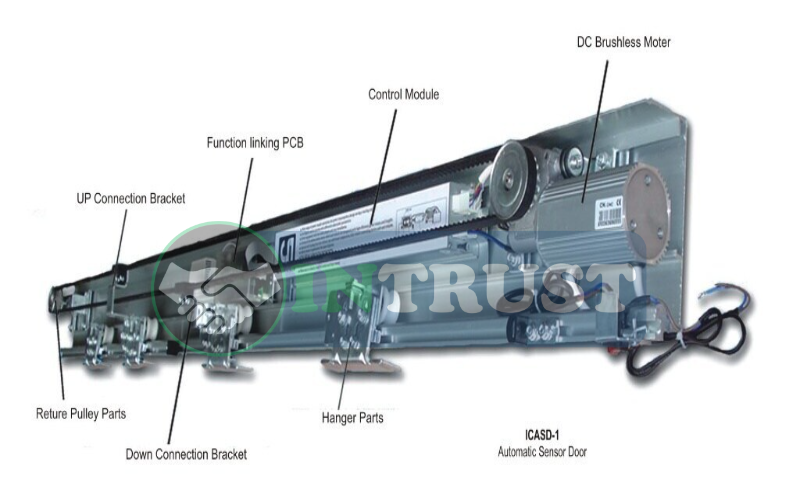

The Major component of Automatic Sliding Door
- DC Motor
- Microwave Motion Sensor/Hand Sensor/Foot Sensor
- Controller
- Power supply
- Hanger
- Pulley
- Belt
- Wheel
- Push/Remote (optional)
- Door weight max.: 1x150kg, 2x120kg
- Door Width: 500-1200 mm
- Opening speed: 150-600 mm/s
- Closing speed: 120-500 mm/s
- Hold open time: 0~9 s
- Motor: 24V 60-100W brush-less DC
- Ambient temperature: -20℃~+60℃
- Voltage: AC 200~250V 50/60Hz
Frequently Asked Questions
What is an automatic sliding glass door operator?
An automatic sliding glass door operator is a motorized mechanism that opens and closes a sliding glass door automatically when a sensor detects a person approaching.
What does 150T mean?
150T refers to the specific model/type of automatic sliding door operator. The actual suitable door weight and configuration should be confirmed according to the manufacturer's technical specifications.
Is the 150T automatic door operator made in China?
Yes. This product is specified as a China-made automatic sliding door operator.
Can this operator be used with glass doors?
Yes, it is designed for automatic sliding glass door applications, subject to the appropriate glass door hardware and the operator's load capacity.
How does the sensor work?
The motion sensor detects a person approaching the entrance and sends a signal to the operator to open the sliding door automatically. The operator
Can the opening and closing speed be adjusted?
Depending on the specific 150T operator configuration, opening and closing parameters can be adjusted to provide smooth door operation.
Where can I use an automatic sliding glass door?
It can be used in offices, hospitals, hotels, banks, shopping malls, restaurants, showrooms, commercial buildings and other entrances.
Is professional installation required?
Professional installation is recommended to ensure correct alignment, sensor positioning, electrical connection and safe operation.
Is the automatic sliding door suitable for shops and showrooms?
Yes. The system can be used for shop entrances and showrooms where convenient and modern automatic access is required.
Does the door close automatically after opening?
Yes, the operator is designed to automatically close the sliding door after the opening cycle when the entrance is clear.
Can the sensor detect people approaching from both sides?
The sensor configuration depends on the selected system and installation arrangement. Suitable sensors can be configured for the required entrance direction.
Can the operator be used in Bangladesh?
Yes. The 150T China automatic sliding door operator can be supplied and installed for suitable projects in Bangladesh, subject to the site's electrical and door requirements.
Can you provide installation and maintenance support?
Installation and maintenance support can be arranged depending on the supplier or installer. Proper periodic inspection helps maintain smooth and reliable automatic door operation.
What should I check before purchasing?
You should confirm the door width, number of panels, total door weight, glass thickness, available installation space, power supply and required operating frequency before selecting the operator.
